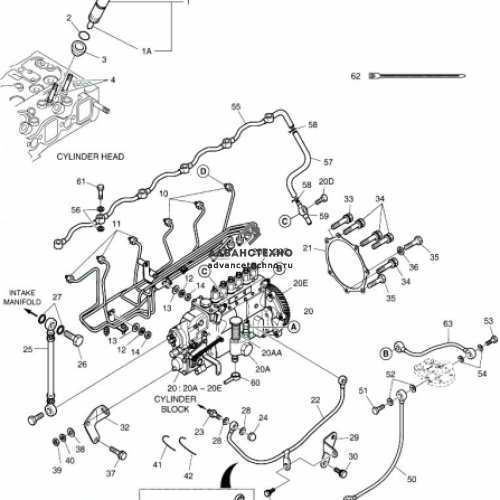

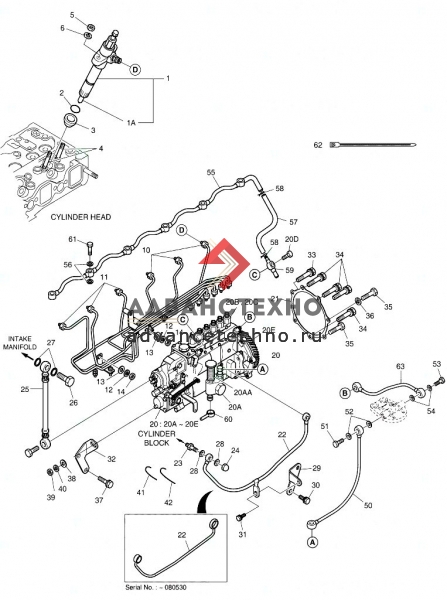

FUEL SYSTEM
FUEL SYSTEM на складе Адванстехно
-
HOLDER ASSY,NOZZLE рис.1
65.10101-7102B
-
HOLDER ASSY,NOZZLE рис.1
65.10101-7102A
-
HOLDER ASSY,NOZZLE рис.1
65.10101-7091
-
SEALRING рис.2
65.96507-0050
-
SEALRING рис.3
65.96507-0044B
-
SEALRING рис.3
65.96507-0051
-
BOLT,STUD рис.4
65.90201-0099
-
NUT,HEX рис.5
06.11063-8214
-
WASHER,SPRING рис.6
06.16731-2107
-
PIPE ASSY,INJECTION рис.10
65.10301-6202
-
PIPE ASSY,INJECTION рис.10
65.10301-6088
-
PIPE ASSY,INJECTION рис.11
65.10301-6203
-
PIPE ASSY,INJECTION рис.11
65.10301-6089
-
WASHER,SPRING рис.12
06.16731-2107
-
WASHER,PLAIN рис.13
06.15010-2311
-
NUT,HEX рис.14
06.11063-8214
-
NOZZLE,INJECTION рис.1
65.10102-6072
-
NOZZLE,INJECTION рис.1
65.10102-6061
-
PUMP ASSY,INJECTION рис.20
400912-00069
-
PUMP ASSY,INJECTION рис.20
65.11101-7389B
-
PUMP,INJECTION рис.20
65.11101-7389A
-
PUMP,FEED рис.20
105220-649A
-
PUMP,FEED рис.20
400908-00004
-
PLUNGER рис.20
131150-2620
-
VALVE,EXHAUST рис.20
131110-5520
-
VALVE ASSY,OVERFLOW рис.20
131424-1520
-
COUPLING,PUMP,INJECTION рис.20
156639-8820
-
GASKET рис.21
65.11902A0001
-
PIPE,OIL рис.22
65.05701-5328
-
PIPE ASSY,OIL рис.22
65.05701-5200
-
UNION,HOLLOW рис.23
65.98155-0011
-
NUT,CAP рис.24
06.12172-9314
-
HOSE ASSY,AIR рис.25
65.08301-6010A
-
SCREW,HOLLOW рис.26
65.98150-0053B
-
SEALRING рис.27
06.56180-0714
-
SEALRING рис.28
06.56180-0714
-
BRACKET рис.29
65.97403-0014
-
BOLT ASSY рис.30
06.01943-3213
-
BOLT ASSY рис.31
06.01923-3112
-
BRACKET,INJECTION PUMP рис.32
65.11401-0002C
-
BOLT ASSY рис.33
06.01913-3122
-
BOLT ASSY рис.34
06.01913-3124
-
BOLT,HEX рис.35
06.01283-7128
-
WASHER,SPRING рис.36
06.16731-2107
-
BOLT ASSY рис.37
06.01953-3213
-
WASHER,PLAIN рис.38
06.15010-2312
-
NUT,HEX рис.39
06.11063-9215
-
WASHER,SPRING рис.40
06.16731-2108
-
SEAL,WIRE рис.41
65.11596-0001
-
SEAL,WIRE рис.42
65.11596-0002
-
HOSE,FUEL рис.50
65.96341-0100
-
SCREW,HOLLOW рис.51
06.78144-2204
-
SEALRING рис.52
65.96507-0043
-
SCREW,HOLLOW рис.53
06.78144-2204
-
SEALRING рис.54
65.96507-0043
-
PIPE,FUEL рис.55
65.12301-5824
-
SEALRING рис.56
06.56180-0712
-
HOSE,RUBBER рис.57
65.96301-0176
-
CLIP рис.58
65.97401-0089
-
PIPE ASSY,FUEL рис.59
65.12301-5825
-
PIPE,FUEL рис.60
65.12301-5022
-
SCREW,HOLLOW рис.61
65.98150-0015B
-
BAND рис.62
65.97460-0002
